Pièces de rechange pour les forages au diamant . . . . . . . . . . After market replacement parts supplier for the Drilling Industry

SPARE PARTS

DRILLHEAD ASSEMBLIES

CHUCK ASSEMBLIES

CLAMP ASSEMBLIES

SPARE PARTS
(Click on a picture for a "Zoom")

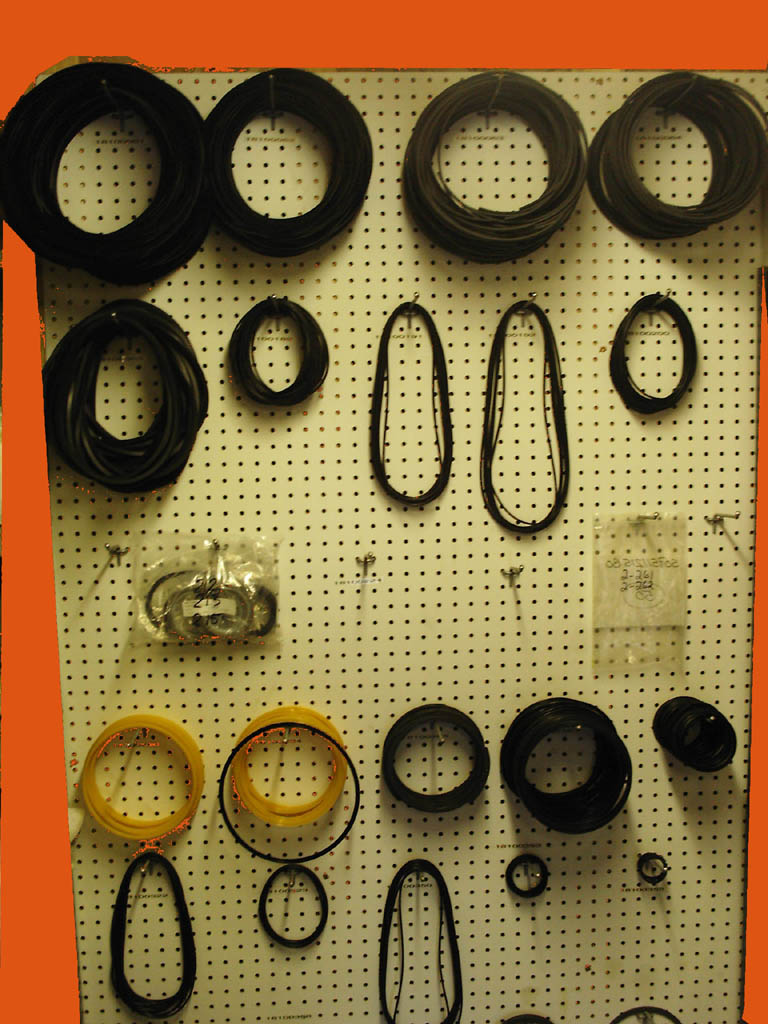

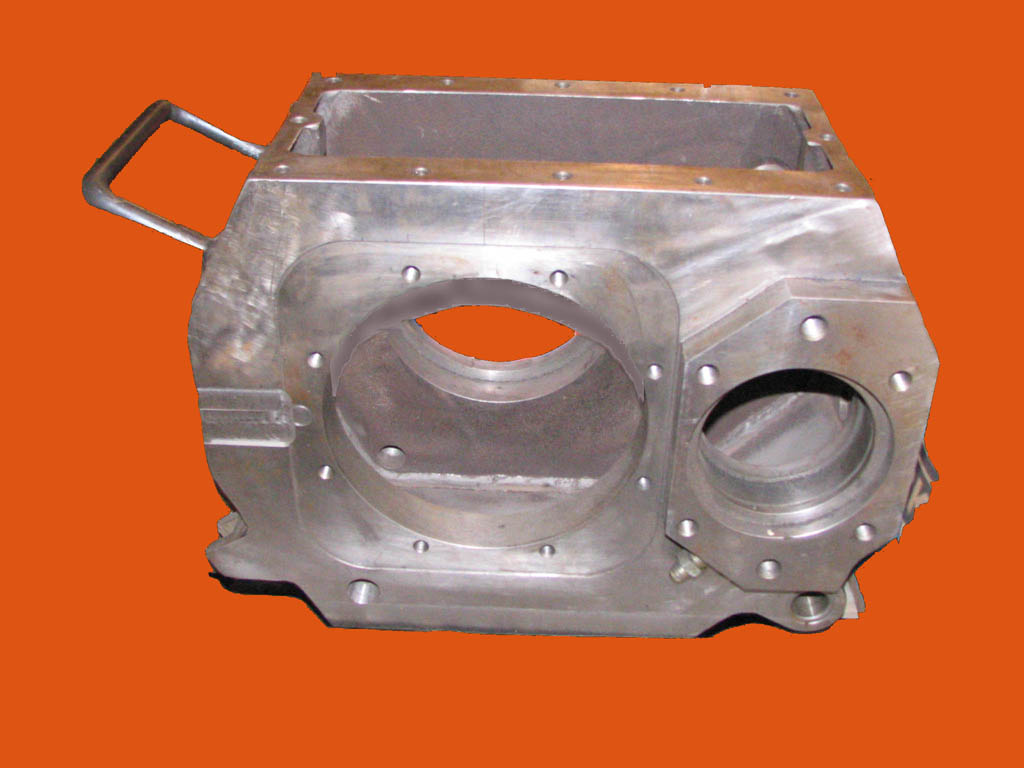

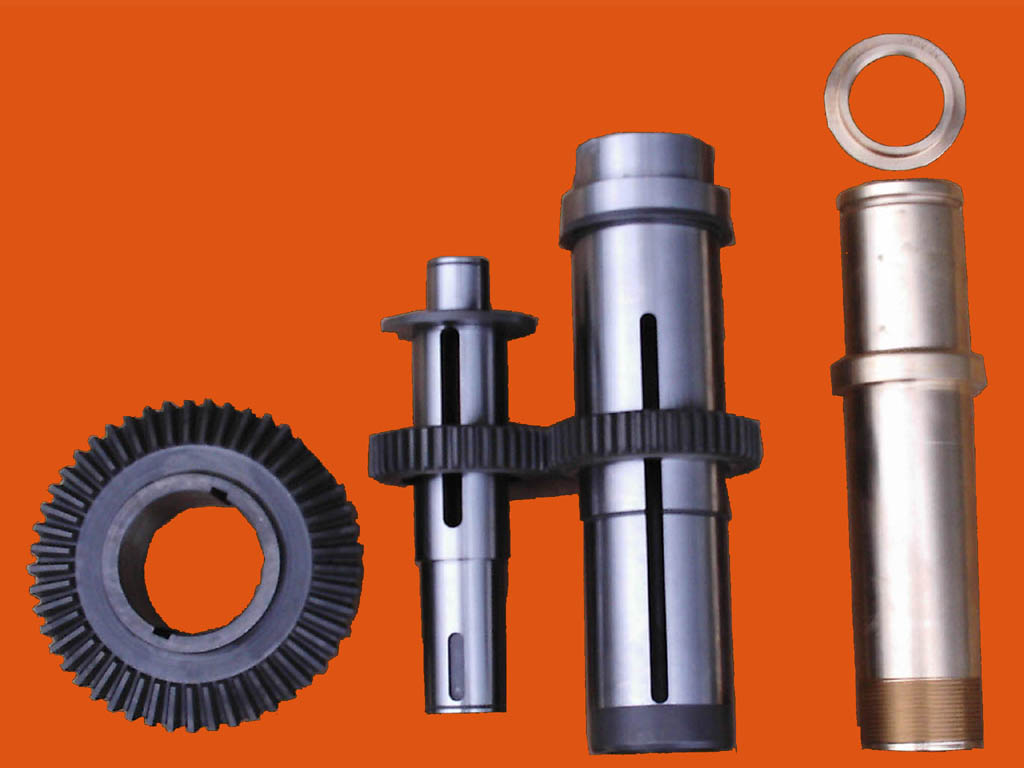

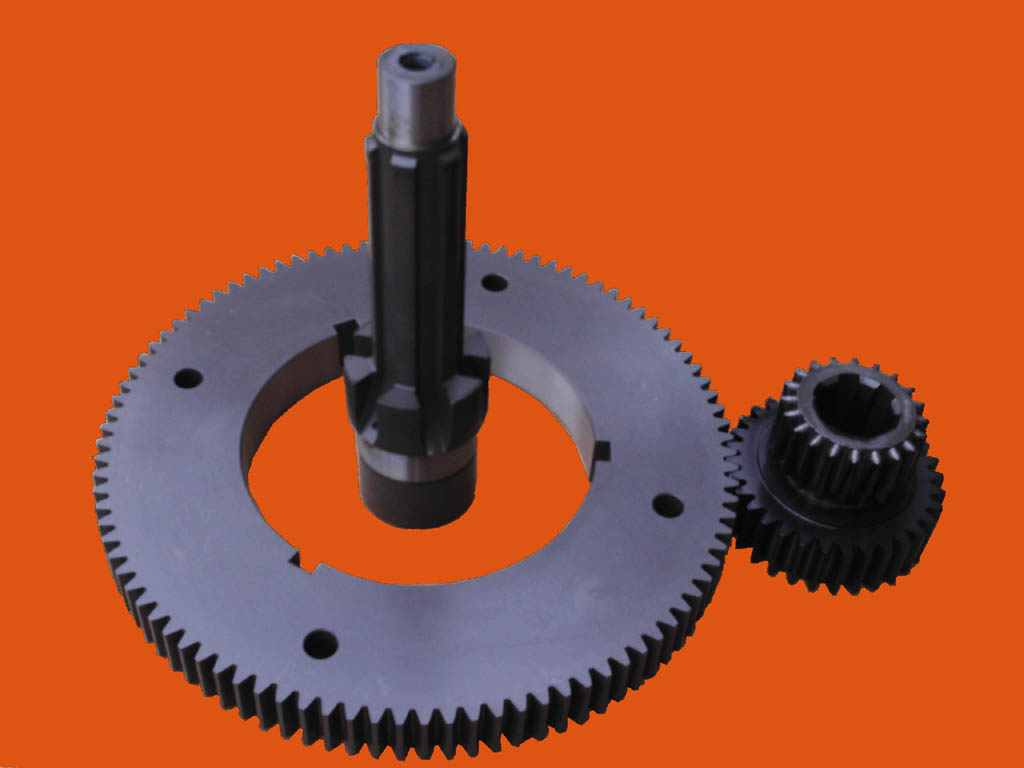

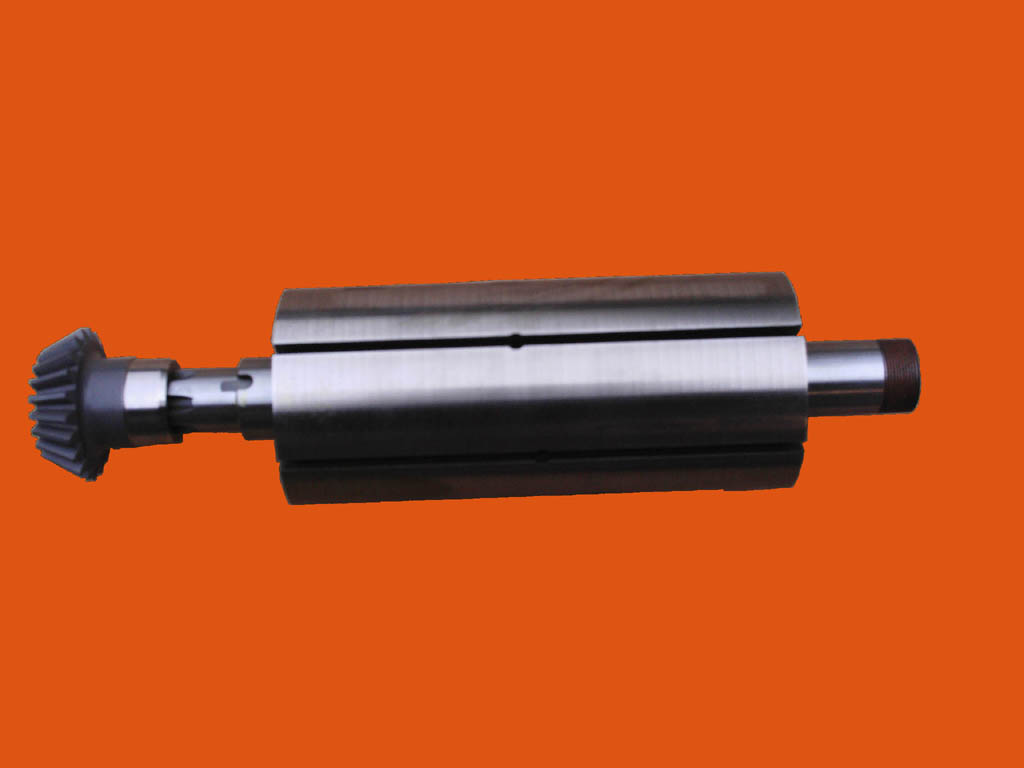

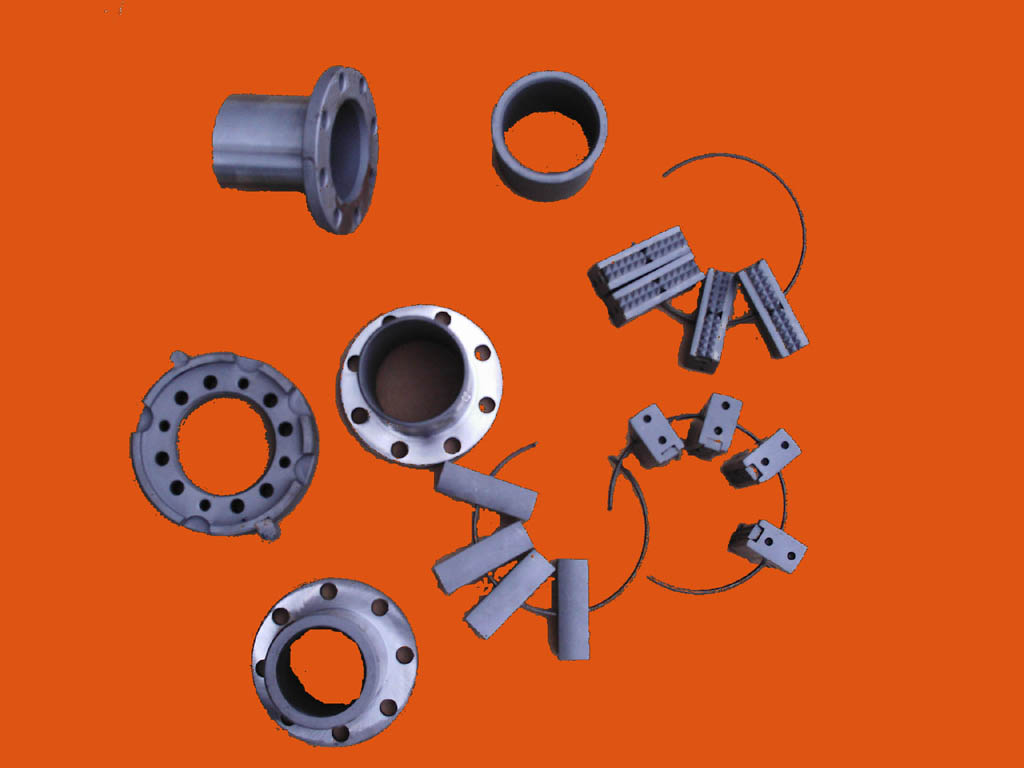

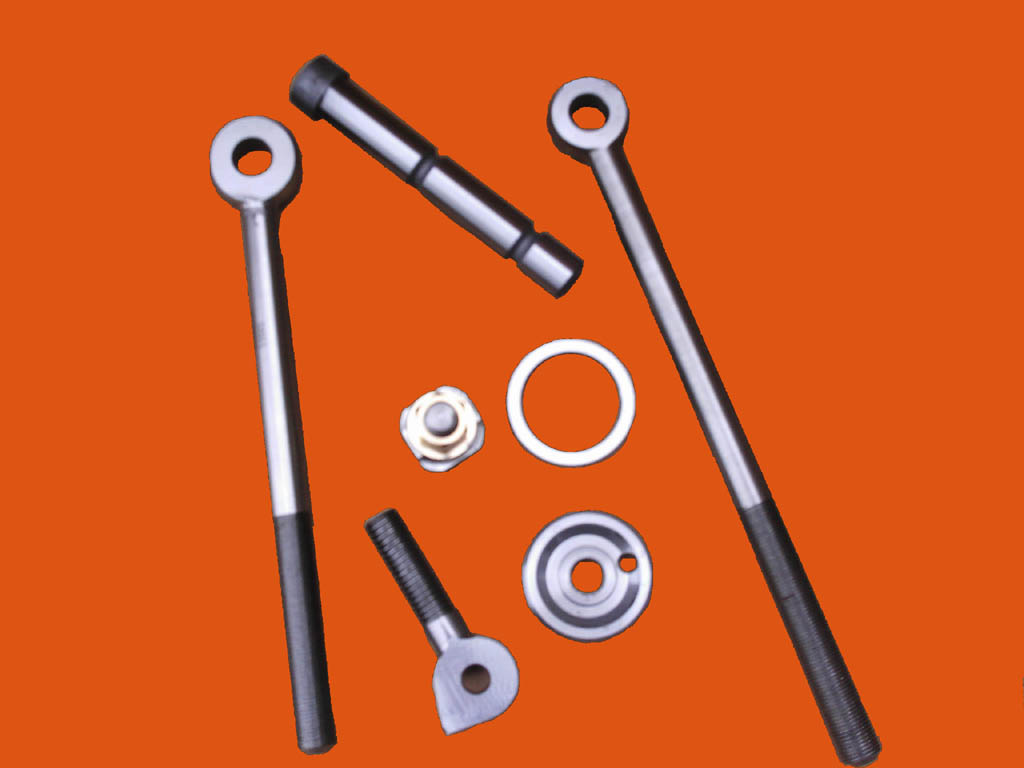

misc. parts for surface and underground drills

parts for air powered drills, mechanical drills, and hydraulic drills

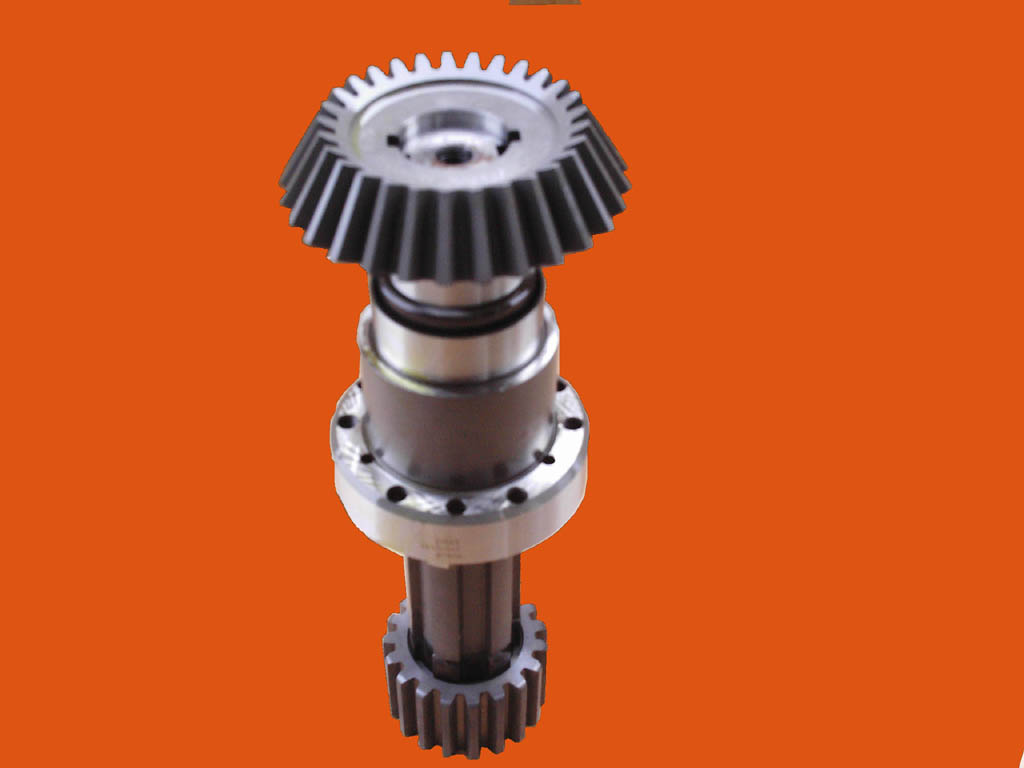

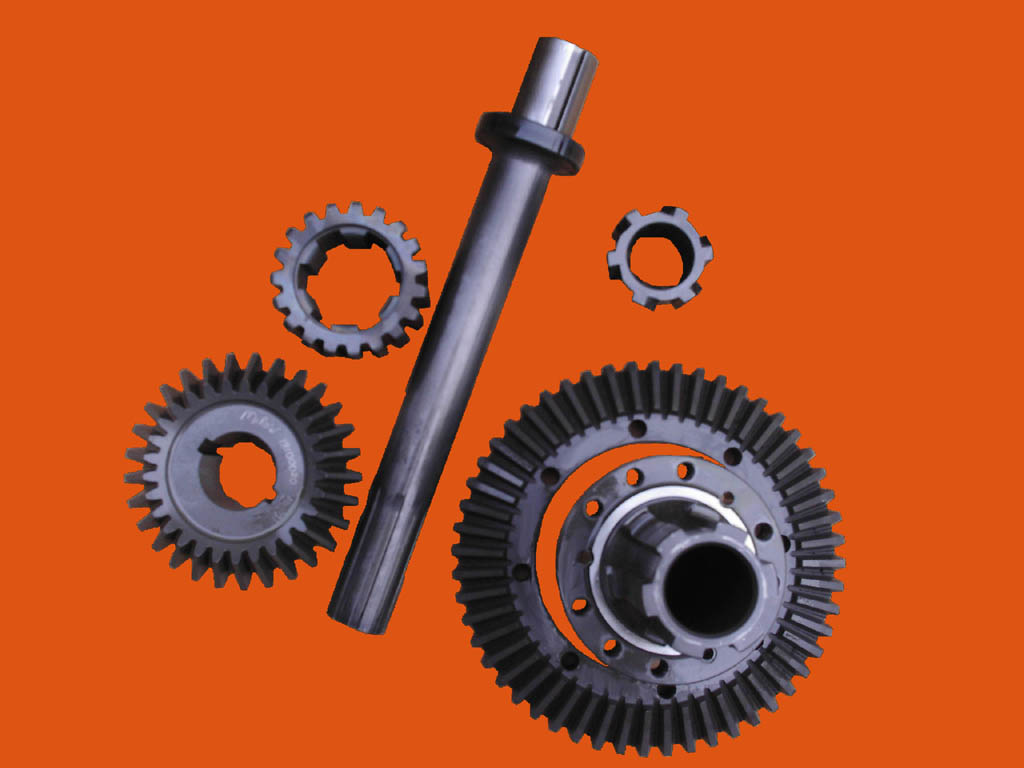

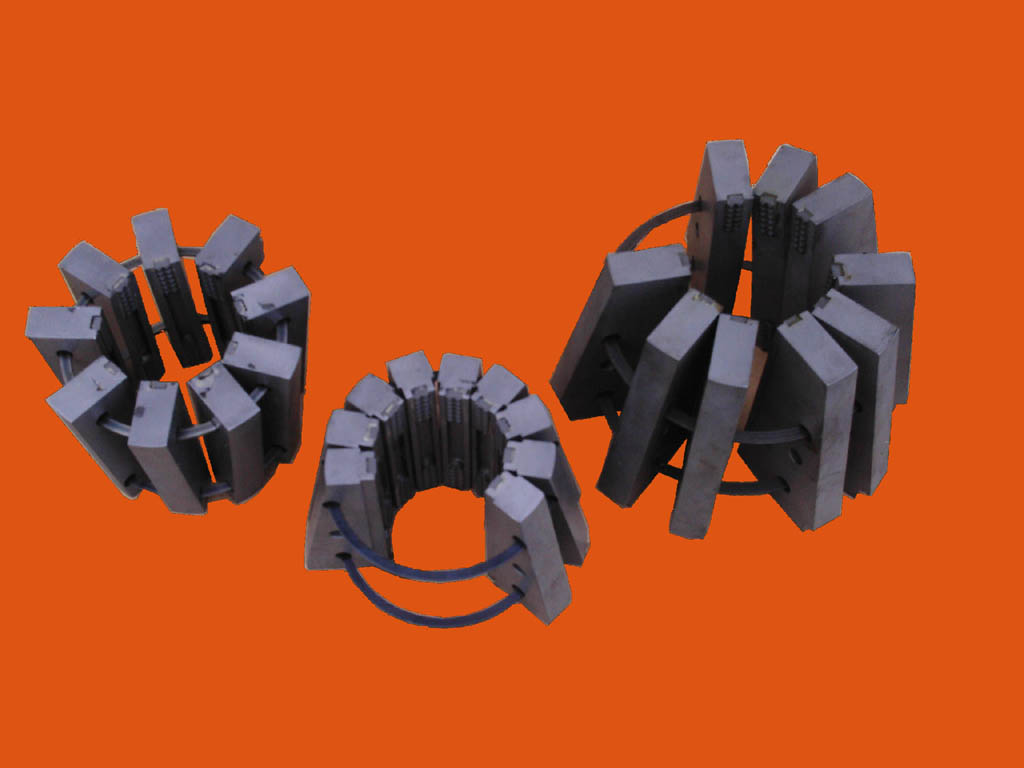

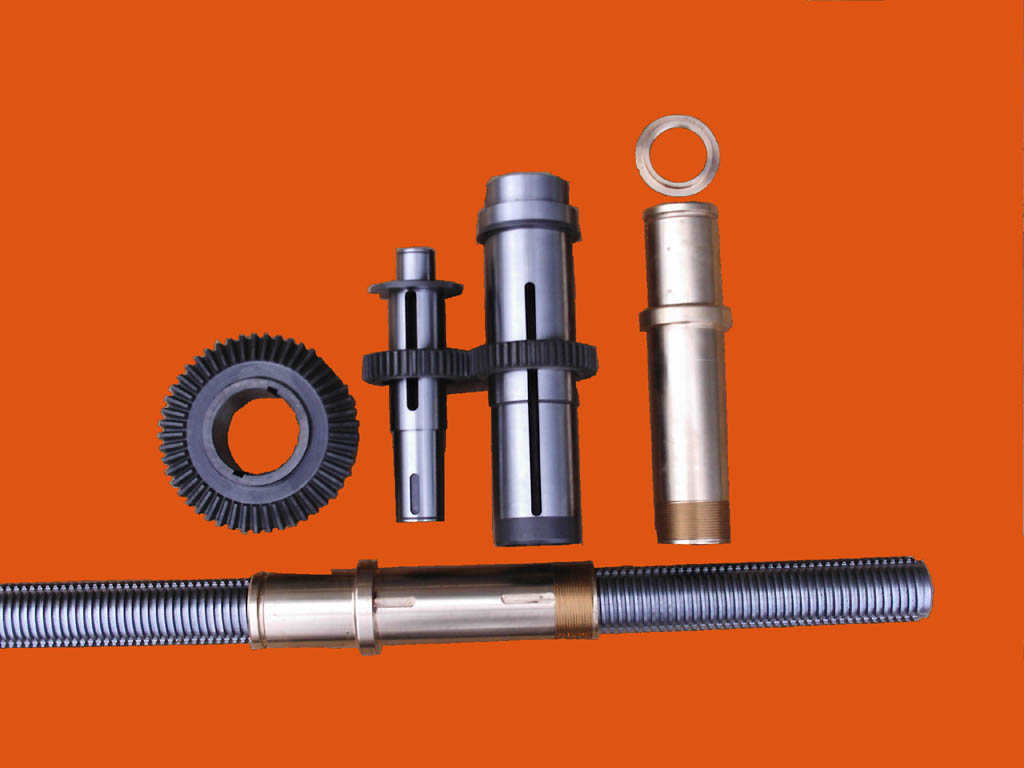

gears, shafts, bushings, jaw sets, etc.

Top of the page

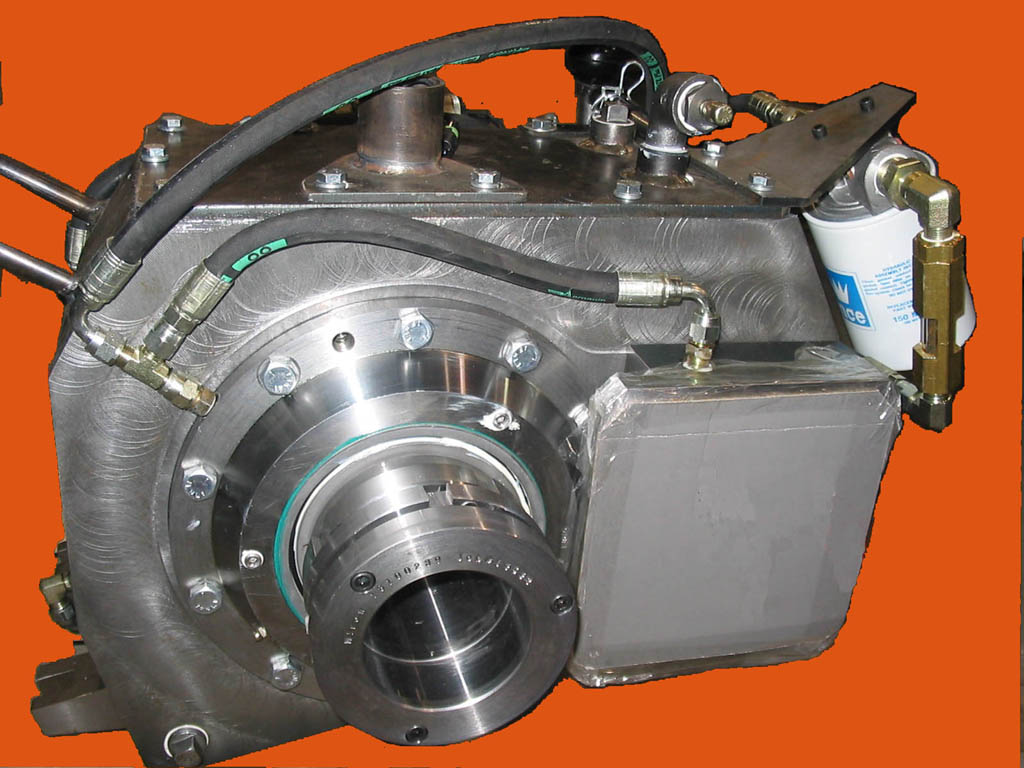

DRILLHEADS ASSEMBLIES
(Click on a picture for a "Zoom")

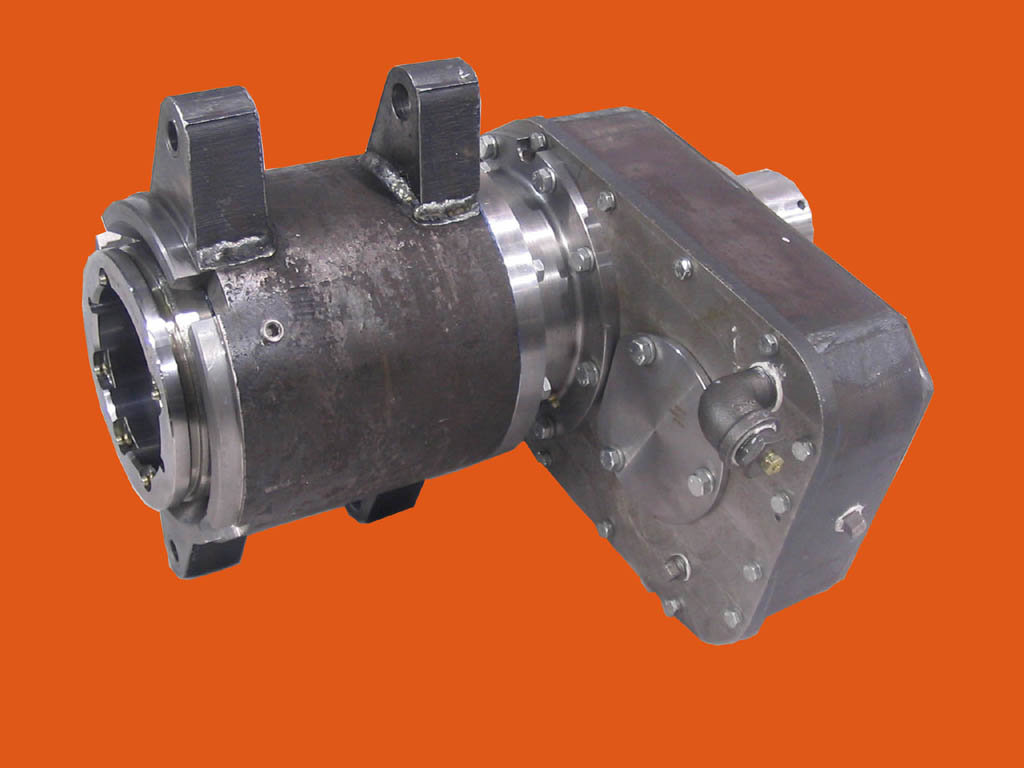

DRILLHEAD ASSEMBLY (B size)

	1 speed drillhead
	1:1 ratio
	supplied with a hydraulic chuck
	2 3/16" is the maximum rod diameter
	4 carbide jaws per set
	weighs approximately 220 pounds (100 kg.)

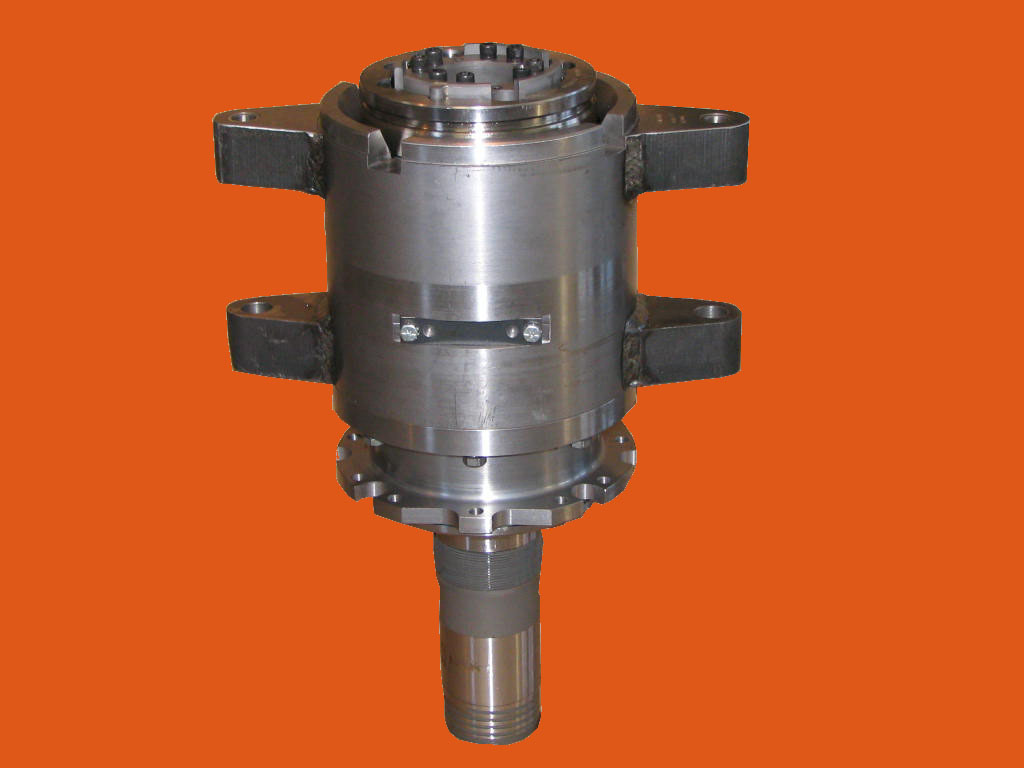

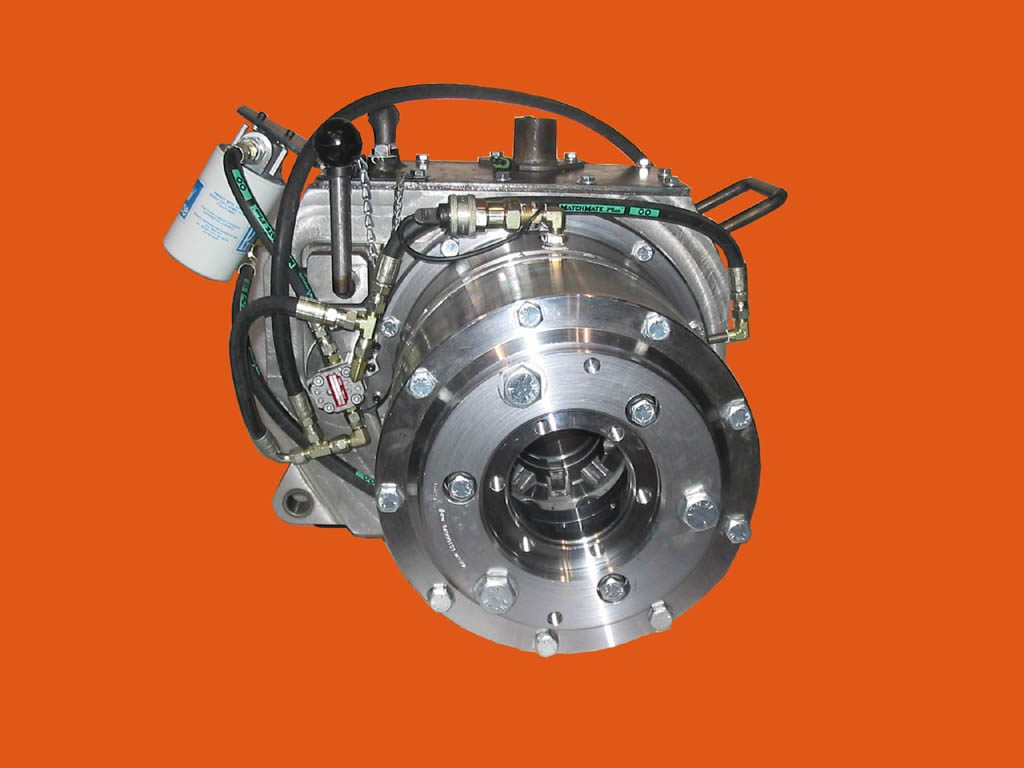

DRILLHEAD ASSEMBLY (H size)

	2 speed drillhead
	3.0:1 ratio in low gear
	5.4:1 ratio in high gear
	supplied with a hydraulic chuck
	3 1/2" is the maximum rod diameter
	9 carbide jaws per set
	also includes a lubrification system for the bearings
	weighs approximately 850 pounds (386 kg.)

DRILLHEAD ASSEMBLY (H size)

	2 speed drillhead
	3.1:1 ratio in low gear
	4.4:1 ratio in high gear
	supplied with a hydraulic chuck
	3 1/2" is the maximum rod diameter
	9 carbide jaws per set
	also includes a lubrification system for the bearings
	weighs approximately 700 pounds (386 kg.)

Top of the page

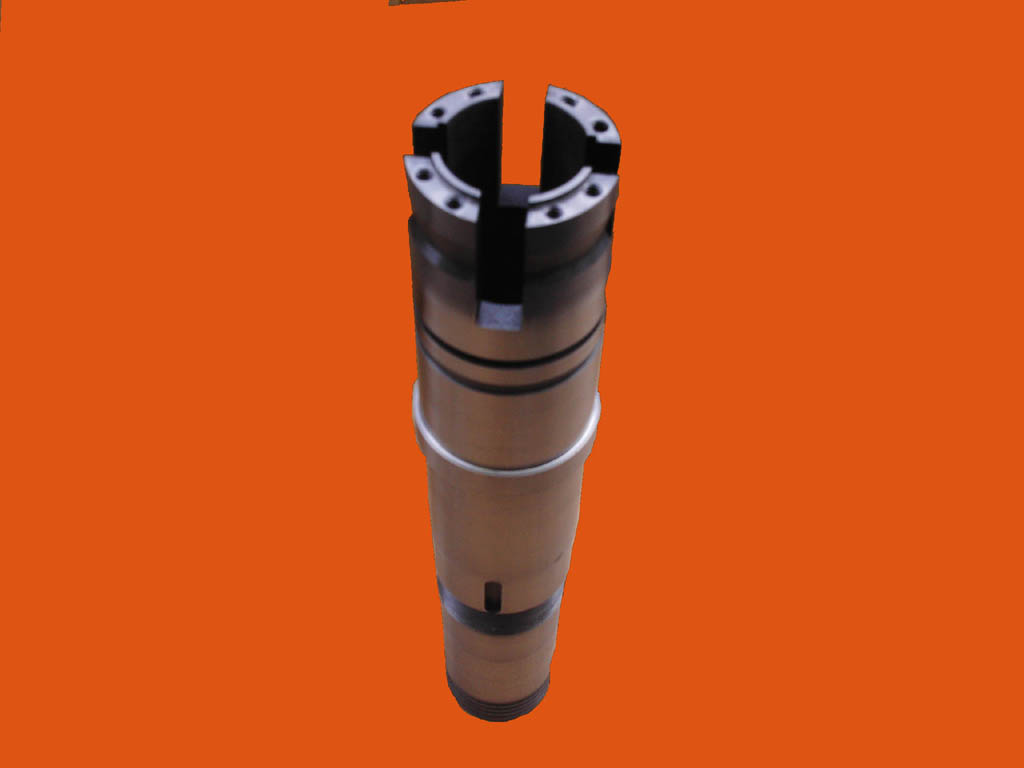

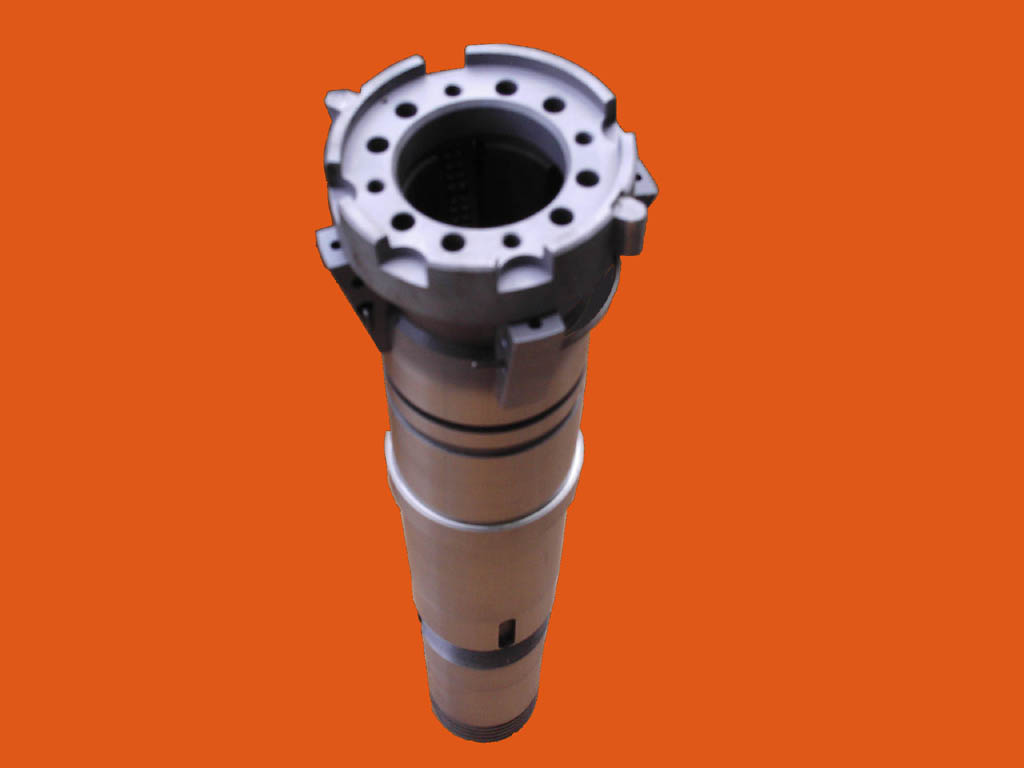

CHUCK ASSEMBLIES
(Click on a picture for a "Zoom")

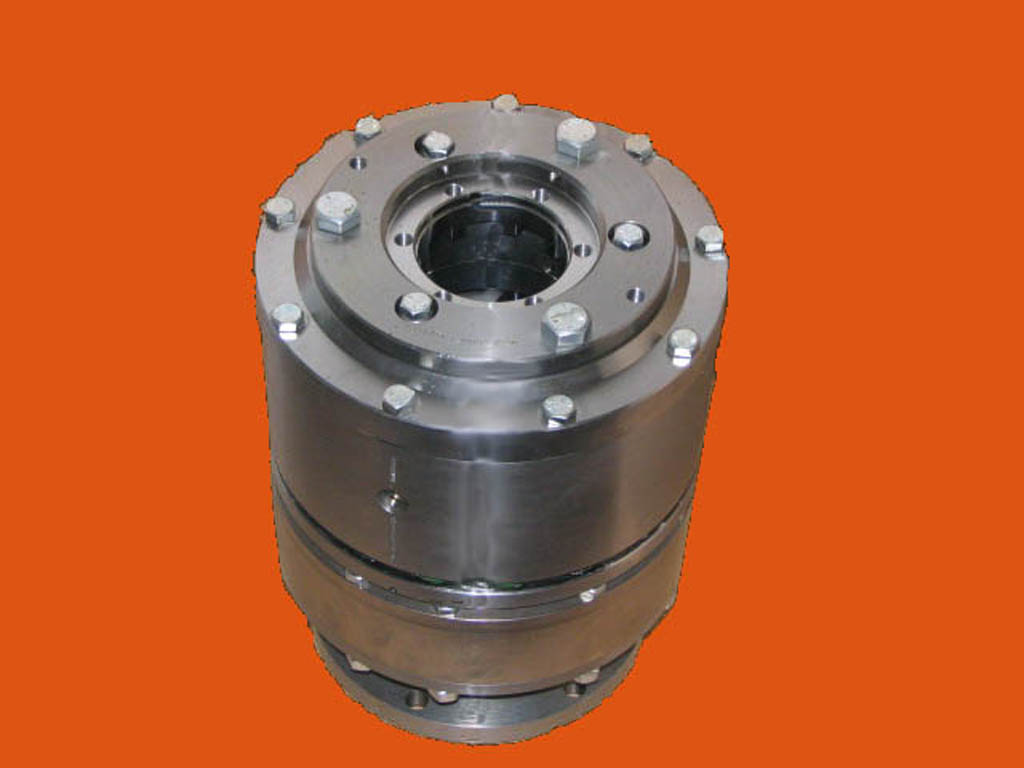

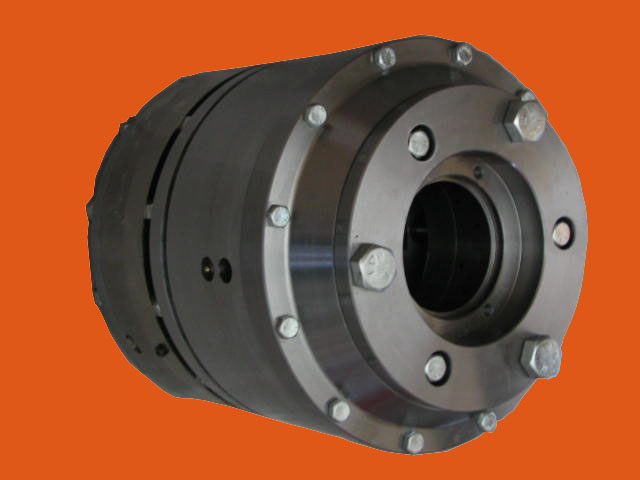

CHUCK ASSEMBLY (B size)

	opened hydraulically and closed automatically by 16 springs
	2 3/16" is the maximum rod diameter
	4 carbide jaws per set
	weighs approximately 130 pounds (59 kg.)

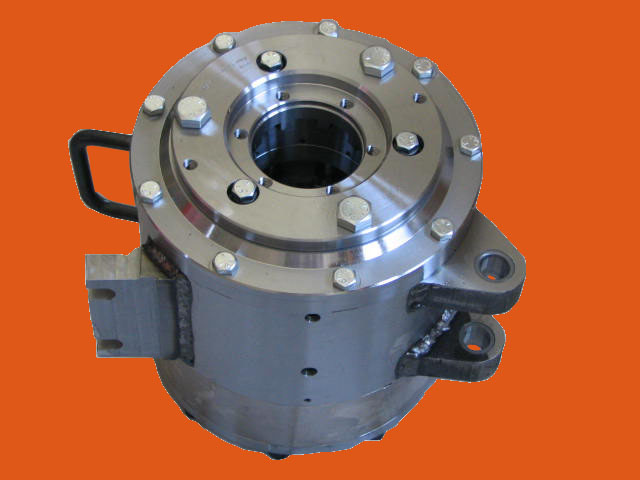

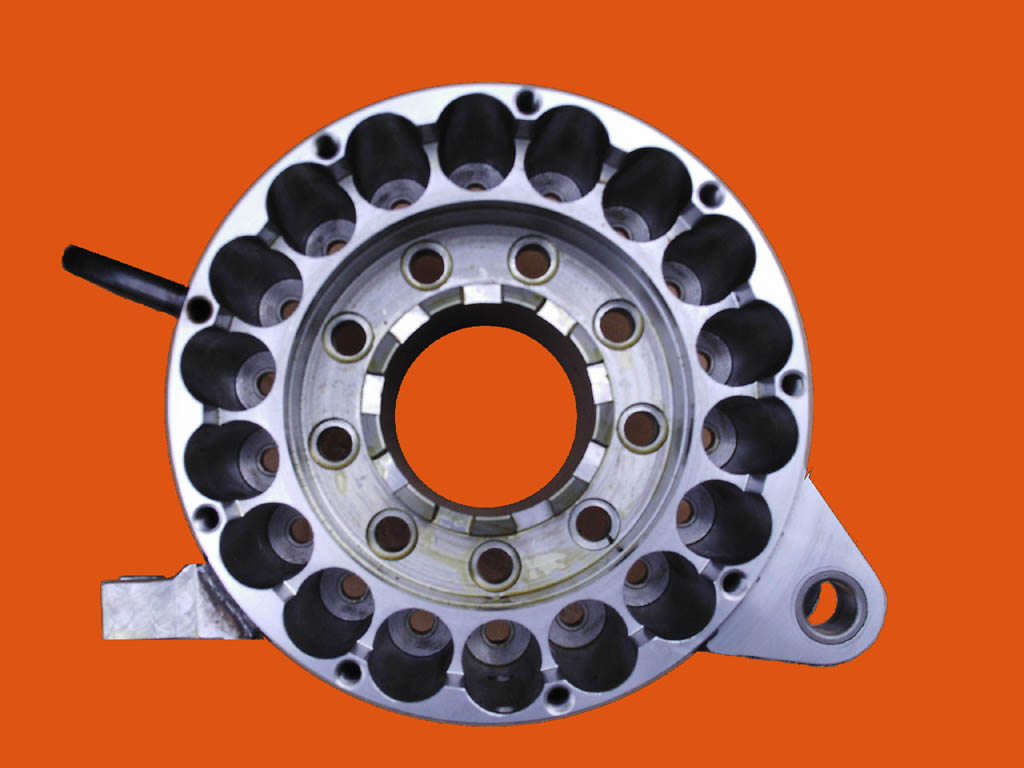

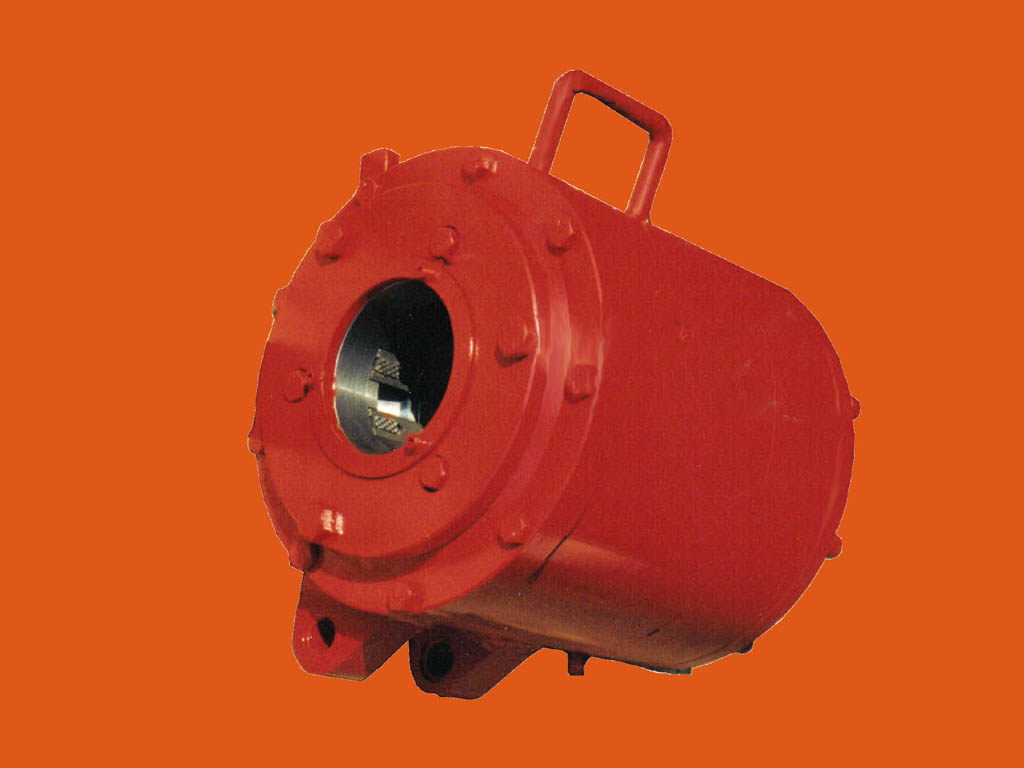

CHUCK ASSEMBLY (H size)

	opened hydraulically and closed automatically by 12 or 18 springs
	available with either 7^oor 12,5^obowl
	3 1/2" is the maximum rod diameter
	9 carbide jaws per set
	weighs approximately 260 pounds (118 kg.)

CHUCK ASSEMBLY (P size)

	opened hydraulically and closed automatically by 24 springs
	available with a 12^obowl
	4 1/2" is the maximum rod diameter
	9 carbide jaws per set
	weighs approximately 410 pounds (186 kg.)

Top of the page

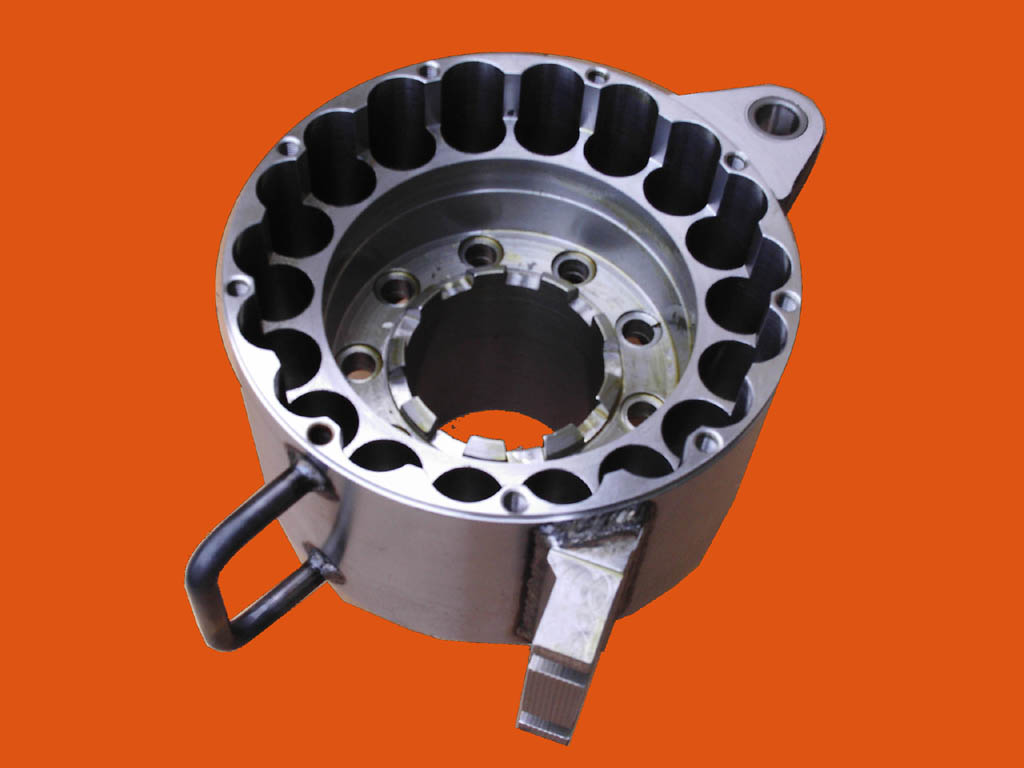

CLAMP ASSEMBLIES
(Click on a picture for a "Zoom")

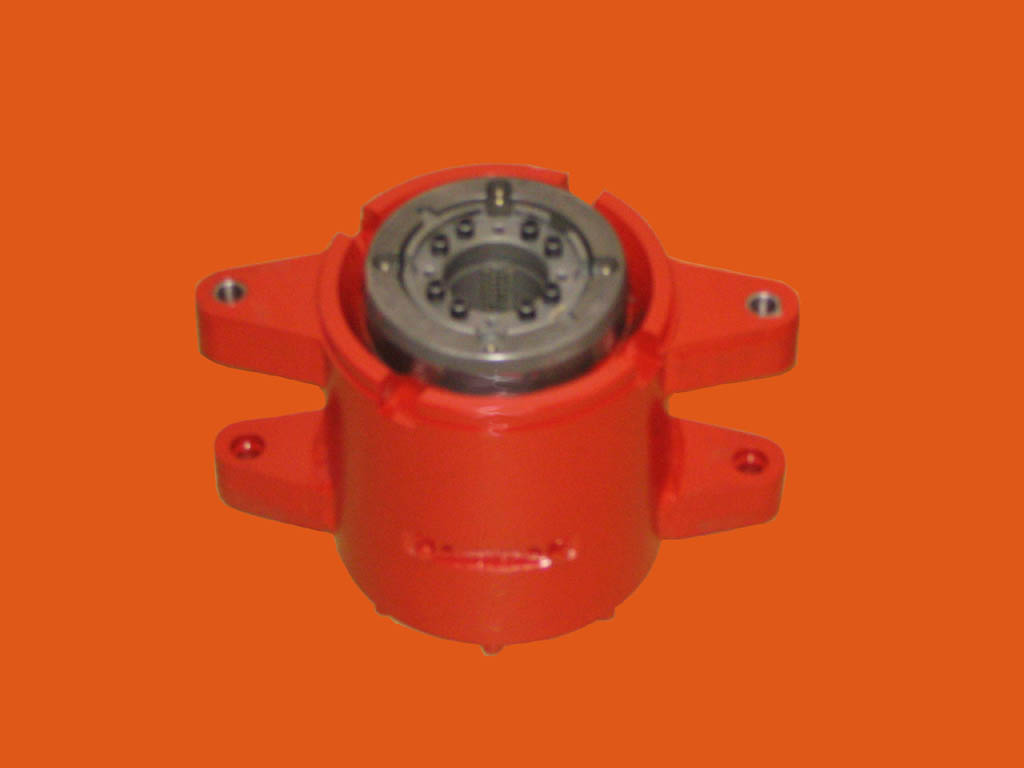

CLAMP ASSEMBLY (B size)

	opened hydraulically and closed automatically by 16 springs
	2 3/16" is the maximum rod diameter
	4 carbide jaws per set
	weighs approximately 110 pounds (50 kg.)

CLAMP ASSEMBLY (H size)

	opened hydraulically and closed automatically by 18 springs
	3 1/2" is the maximum rod diameter
	9 carbide jaws per set
	weighs approximately 260 pounds (118 kg.)

CLAMP ASSEMBLY (P size)

	opened hydraulically and closed automatically by 18 springs
	4 1/2" is the maximum rod diameter
	9 carbide jaws per set
	weighs approximately 290 pounds (132 kg.)
